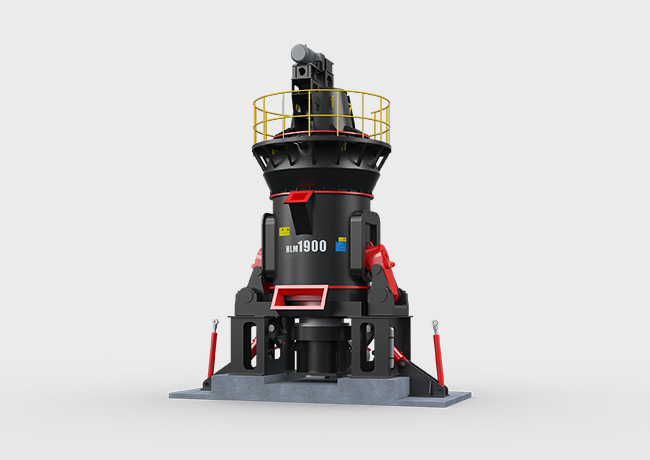

HLM SERIES VERTICAL GRINDING MILL-

EQUIPMENT ADVANTAGE

High product purity

The limit device ensures that the grinding disc and the grinding roller do not come into direct contact during operation, resulting in very low iron content in the product. The wear rate per unit product is generally no higher than 10g/t, and the mechanically worn iron is easy to remove, effectively ensuring the whiteness and purity of the material.

Simple operation and maintenance

The hydraulic maintenance device allows the grinding roller to be easily turned out of the machine, making the replacement of the grinding roller sleeve and the maintenance of the grinding roller convenient and quick.

Wide range of humidity of grindable materials

The vertical mill grinding system does not require an additional dryer, as hot air can be directly introduced. The hot air repeatedly contacts and dries the powdery material inside the mill. By adjusting the hot air temperature, it can meet the drying requirements for materials with varying moisture levels, accommodating moisture content as high as 15%.

High efficiency and energy saving

The grinding rollers and grinding plates are made from special materials, with roller sleeves that can be flipped for extended use, ensuring a long service life. Drawing on years of production experience, we continuously optimize the roller path structure, enhancing output and production efficiency. Equipped with a hydraulic loading system, the grinding pressure can be flexibly adjusted according to changes in grindability, making it highly efficient and energy-saving.

Clean and environmental protection

It features low vibration and low noise, with noise levels not exceeding 80 dB. The system operates under complete negative pressure, preventing dust leakage and ensuring reliable sealing. Depending on the material, a dedicated pulse dust collector is used, achieving a dust removal efficiency of up to 99.9%, which surpasses the latest national environmental standards.

WHAT PEOPLE SAY?

This grinding equipment is incredibly efficient, capable of turning large chunks of raw material into fine powder in no time, which greatly boosts our production speed.

Nathan

Germany

07/11/2022

The powder produced is exceptionally fine and uniform, with consistent quality that meets our standards and requirements perfectly. This fine and even particle size not only ensures optimal performance in our applications but also contributes to the overall reliability and effectiveness of our end products. The stable quality of the powder has significantly improved our production processes and meets our precise specifications.

Patrick

The Philippines

20/04/2023

The equipment is extremely easy to operate, with a control panel that is designed to be very intuitive. It only takes a few minutes to get the hang of it, making it especially suitable for beginners. The straightforward design and user-friendly interface ensure that even those who are new to operating such equipment can quickly become proficient. This simplicity helps streamline our operations and minimizes the learning curve for new operators.

Ryan

Indonesia

16/11/2023

The equipment operates with very low noise, which doesn't disturb the working environment at all. This is incredibly important as it helps maintain a comfortable and productive workspace. It is important point of my demand.

Quirin

USA

28/04/2024

The maintenance of this equipment is very convenient; disassembly and cleaning are simple, which helps us save a lot of time and maintenance costs.

Osiris

Canada

26/11/2023

TECHNICAL PARAMETERS

HLM coal powder vertical mill

HLM vertical mining mill

HLM slag vertical mill

HLM cement clinker pre grinding vertical mill

HLM cement vertical mill

HLM high precision vertical mill

Specifications	Capacity(t/h)	Pulverized coal fineness	The raw coal moisture	Pulverized coal moisture	Main motor power(kW)
HLM1200M	6—10	R0.08=5-15%	≤15%	≤1-5%	110-132
HLM1300M	10-15				160—200
HLM1500M	15—20				220—280
HLM1700M	20-30				280-355
HLM1900M	26-35				355—450
HLM2200M	35-50				450—560
HLM2400M	45-55				560-710
HLM2800M	60-80				900—1120

Note:Raw coal HGl≥55

Specifications	Capacity(t/h)	Main motor power(kW)
HLM1200M	6—10	110-132
HLM1300M	10-15	160—200
HLM1500M	15—20	220—280
HLM1700M	20-30	280-355
HLM1900M	26-35	355—450
HLM2200M	35-50	450—560
HLM2400M	45-55	560-710
HLM2800M	60-80	900—1120

Note:Raw coal HGl≥55

Specifications	Capacity(t/h)	The finished product fineness	The raw material moisture	The finished product moisture	Main motor power(kW)
HLM1300K	10-40	0.84-0.37mm (20-400 mesh)	≤15%	≤1%	200
HLM1500K	13-50				280
HLM1700K	18-70				400
HLM1900K	20-85				500
HLM2200K	35-135				800-900
HLM2400K	40-160				900-1120
HLM2800K	50-200				1120-1250
HLM3400K	70-260				1800-2000
HLM3700K	90-320				2500-2800

Note: The grindability (Bond) index of raw materials is less than or equal to 13kw/t

Specifications	Capacity(t/h)	Main motor power(kW)
HLM1300K	10-40	200
HLM1500K	13-50	280
HLM1700K	18-70	400
HLM1900K	20-85	500
HLM2200K	35-135	800-900
HLM2400K	40-160	900-1120
HLM2800K	50-200	1120-1250
HLM3400K	70-260	1800-2000
HLM3700K	90-320	2500-2800

Note: The grindability (Bond) index of raw materials is less than or equal to 13kw/t

Specifications	Capacity(t/h)	Specific surface area	Slag moisture	Mineral moisture	Main motor power(kW)
HLM17-2N	6-10	≥420㎡/kg	≤15%	≤1%	200-220
HLM19-2N	8-13				280-315
HLM21-2N	10-15				400-450
HLM24-2N	12-18				500-560
HLM28-2N	22-30				900-1000
HLM35-3N	55-70				1800-2000
HLM42-4N	70-100				2500-2800
HLM46-4N	85-135				3150-3800
HLM53-4N	130-165				4500-5000

Note: Slag grindability (Bond) index ≤25kw/t; Steel slag grindability (Bond) index ≤30kw/t; The production of steel slag is reduced by about 30-40% when it is ground.

Specifications	Capacity(t/h)	Main motor power(kW)
HLM17-2N	6-10	200-220
HLM19-2N	8-13	280-315
HLM21-2N	10-15	400-450
HLM24-2N	12-18	500-560
HLM28-2N	22-30	900-1000
HLM35-3N	55-70	1800-2000
HLM42-4N	70-100	2500-2800
HLM46-4N	85-135	3150-3800
HLM53-4N	130-165	4500-5000

Note: Slag grindability (Bond) index ≤25kw/t; Steel slag grindability (Bond) index ≤30kw/t; The production of steel slag is reduced by about 30-40% when it is ground.

Specifications	Capacity(t/h)	Product fineness		The raw material moisture	Main motor power(kW)
Specifications	Capacity(t/h)	≤80μm	≤2mm	The raw material moisture	Main motor power(kW)
HLM17-2Y	12-20	≥30%	≥90%	≤3%	200
HLM19-2Y	18-25				280
HLM21-2Y	25-35				400
HLM24-2Y	30-45				500
HLM28-2Y	60-80				900
HLM35-3Y	125-165				1800
HLM42-4Y	200-230				2500
HLM46-4Y	250-300				3150
HLM53-4Y	360-420				4500

Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t

Specifications	Capacity(t/h)	Main motor power(kW)
HLM17-2Y	12-20	200
HLM19-2Y	18-25	280
HLM21-2Y	25-35	400
HLM24-2Y	30-45	500
HLM28-2Y	60-80	900
HLM35-3Y	125-165	1800
HLM42-4Y	200-230	2500
HLM46-4Y	250-300	3150
HLM53-4Y	360-420	4500

Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t

Specifications	Capacity(t/h)	Specific surface area	The raw material moisture	The finished product moisture	Main motor power(kW)
HLM19S	8-13	≥380㎡/kg	≤5%	≤1%	280-315
HLM21S	11-18				400-450
HLM24S	15-20				500-560
HLM28S	28-35				900-1000
HLM35S	70-80				1800-2000
HLM42S	95-110				2500-2800
HLM46S	130-150				3150-3800
HLM53S	160-200				4500-5000

Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t

Specifications	Capacity(t/h)	Main motor power(kW)
HLM19S	8-13	280-315
HLM21S	11-18	400-450
HLM24S	15-20	500-560
HLM28S	28-35	900-1000
HLM35S	70-80	1800-2000
HLM42S	95-110	2500-2800
HLM46S	130-150	3150-3800
HLM53S	160-200	4500-5000

Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t

Specifications	Feed particle size(mm)	Capacity(t/h)	Product fineness	The raw material moisture	Main motor power(kW)
HLM1200X	≤10	2-6	Screen passing rate of 10-40μm 97%	≤4%	132
HLM1300X	≤10	3-10			220
HLM1500X	≤10	4-13			315
HLM1700X	≤15	7-18			450
HLM1900X	≤15	8-23			560
HLM2200X	≤20	13-35			800
HLM2400X	≤20	15-45			1000

Note: Mohs hardness grade 4 or below

Specifications	Feed particle size(mm)	Capacity(t/h)	Main motor power(kW)
HLM1200X	≤10	2-6	132
HLM1300X	≤10	3-10	220
HLM1500X	≤10	4-13	315
HLM1700X	≤15	7-18	450
HLM1900X	≤15	8-23	560
HLM2200X	≤20	13-35	800
HLM2400X	≤20	15-45	1000
