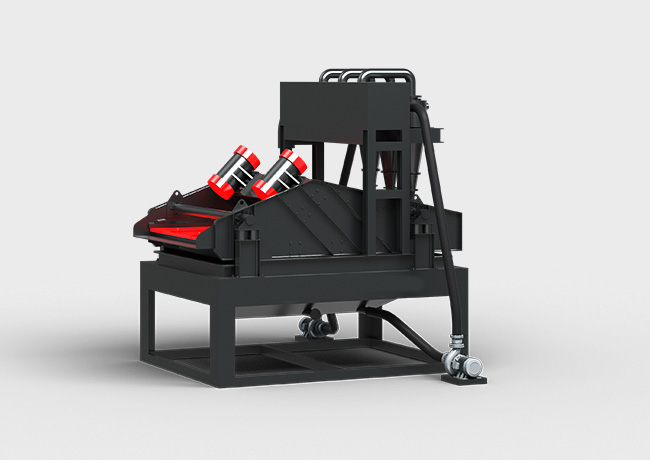

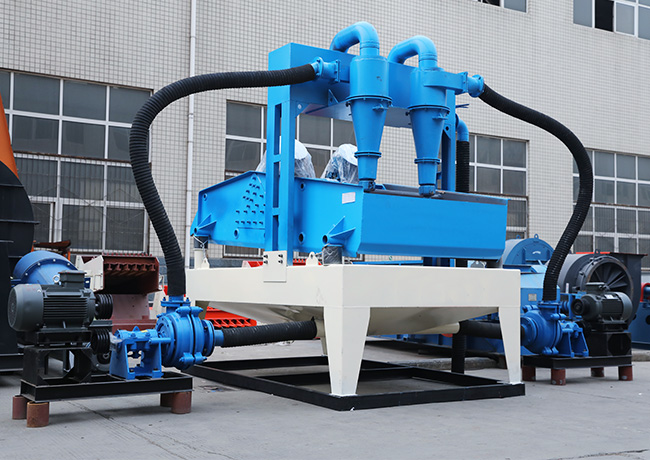

Fine Sand Recycling Machine

The fine sand recovery machine uses a slurry pump to inject slurry with a concentration of ≤40% into a hydrocyclone for separation. The separated coarse particles enter the dewatering screen for dewatering and recovery. It maximizes the recovery of materials larger than 0.075mm and removes sludge and clay smaller than 0.075mm. This machine can be used in conjunction with the existing sand washer on the production line or independently, enhancing resource utilization and maximizing profits.

Consult online Send Inquiry

EQUIPMENT ADVANTAGE

Combines dewatering and fine sand recovery functions.

The hydrocyclone is lined with high-quality polyurethane screen panels, which are impact-resistant and wear-resistant.

Equipped with an energy-saving vibration motor, the motor and eccentric block are integrated into one design, making use and maintenance more convenient and efficient.

FTM

WHAT PEOPLE SAY?

The efficiency of this sand making equipment is extremely high, allowing it to rapidly produce a large quantity of high-quality sand in a short period of time. It not only ensures the uniformity and quality of the sand but also greatly enhances our overall production efficiency. This enables us to complete more tasks in less time, thereby significantly improving the progress and economic benefits of our projects.

Quirin

Quirin

USA
Quirin

26/04/2023

The equipment is very easy to operate, with a well-designed and user-friendly control system. Employees can quickly grasp the operating procedures and use the equipment proficiently after brief training. This not only reduces training time and costs but also enhances production efficiency, allowing the equipment to be put into use more quickly. Additionally, the intuitive control panel and clear operating instructions make it easier for employees to handle the equipment, effectively reducing the risk of operational errors.

Otto

Otto

Pakistan
FTM

09/05/2023

The equipment features low energy consumption and low noise during operation and is equipped with an efficient dust removal system. This not only effectively reduces environmental noise and energy consumption but also significantly lowers airborne dust pollution. These environmental designs meet our sustainability requirements, helping us maintain production efficiency while minimizing our environmental impact, thus supporting the goals of sustainable development and green production. Additionally, these eco-friendly features improve the working environment, providing a more comfortable and healthier working condition for employees.

Osiris

Osiris

Canada
FTM

16/09/2023

The sand produced has a uniform particle size and stable quality, fully meeting our construction needs. This even particle distribution ensures the strength and adhesion of the sand, effectively supporting the structural integrity of concrete and other building materials. Additionally, the stable quality of the sand reduces the need for adjustments in the mixing ratios, improving the accuracy and consistency of construction, thereby enhancing the overall quality and durability of the project. This not only meets our high standards for building materials but also increases construction efficiency and reduces potential issues caused by inconsistent sand quality.

Mike peter

Mike peter

USA
Mike peter

07/07/2023

The equipment is designed with a rational and compact structure, making maintenance very convenient. By streamlining the maintenance process, we can quickly address any potential issues and ensure the equipment remains stable over the long term. Additionally, the ease of maintenance minimizes the impact of downtime on production progress, thereby improving overall production efficiency and helping us save on repair and replacement costs.

Matthew

Matthew

Jamaica
Matthew

13/10/2021

TECHNICAL PARAMETERS

Model Sand Pump
Power (kw)
Sepatator Spec
(mm)
Dewatering Screen Processing Water
Volume (m3/h)
Specifications
(mm)
Power
(kw)
FTM-250 11 250 800×2000 2×0.75 30-60
FTM-300 15 300 800×2000 2×0.75 60-100
FTM-350 18.5 350 1000×2000 2×1.52 70-130
FTM-550 11×2 250×2 1200×3000 2×2.4 100-220
FTM-650 15×2 300×2 1500×3000 2×3 120-272
FTM-750 18.5×2 350×2 1500×3000 2×3 180-350
FTM-750(Ⅱ) 22×2 350×2 1800×3600 2×3.7 230-430
FTM-900 18.5×3 350×3 1800×3600 2×3.7 450-650
Model Sand Pump
Power (kw)
Processing Water
Volume (m3/h)
FTM-250 11 30-60
FTM-300 15 60-100
FTM-350 18.5 70-130
FTM-550 11×2 100-220
FTM-650 15×2 120-272
FTM-750 18.5×2 180-350
FTM-750(Ⅱ) 22×2 230-430
FTM-900 18.5×3 450-650
