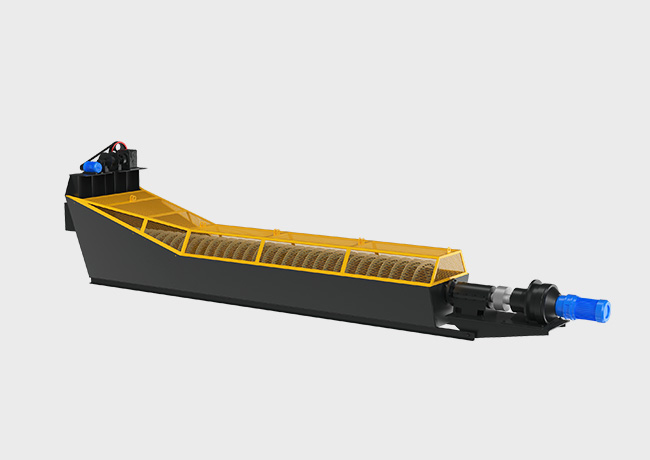

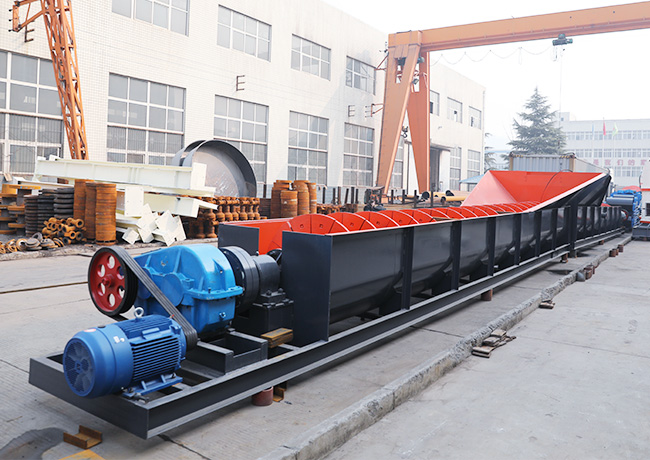

Spiral Sand Washing Machine

The spiral sand washer primarily uses the spiral device inside the equipment to stir the sand and gravel, mixing the soil and water, which are then discharged through the flow outlet of the equipment. Meanwhile, the sand and gravel are gradually screened by the action of the spiral device and discharged from the top outlet, thus achieving the cleaning and screening effect for the sand and gravel.

Consult online Send Inquiry

EQUIPMENT ADVANTAGE

The spiral sand washer features low power consumption and high cleanlines.

With a well-sealed structure, fully enclosed transmission device and adjustable weir plate

It ensures high efficiency, durability, effective cleaning,dewatering.

Additionally, it maintains the stability of fine-grained products.

FTM

WHAT PEOPLE SAY?

The efficiency of this sand making equipment is extremely high, allowing it to rapidly produce a large quantity of high-quality sand in a short period of time. It not only ensures the uniformity and quality of the sand but also greatly enhances our overall production efficiency. This enables us to complete more tasks in less time, thereby significantly improving the progress and economic benefits of our projects.

Quirin

Quirin

USA
Quirin

26/04/2023

The equipment is very easy to operate, with a well-designed and user-friendly control system. Employees can quickly grasp the operating procedures and use the equipment proficiently after brief training. This not only reduces training time and costs but also enhances production efficiency, allowing the equipment to be put into use more quickly. Additionally, the intuitive control panel and clear operating instructions make it easier for employees to handle the equipment, effectively reducing the risk of operational errors.

Otto

Otto

Pakistan
FTM

09/05/2023

The equipment features low energy consumption and low noise during operation and is equipped with an efficient dust removal system. This not only effectively reduces environmental noise and energy consumption but also significantly lowers airborne dust pollution. These environmental designs meet our sustainability requirements, helping us maintain production efficiency while minimizing our environmental impact, thus supporting the goals of sustainable development and green production. Additionally, these eco-friendly features improve the working environment, providing a more comfortable and healthier working condition for employees.

Osiris

Osiris

Canada
FTM

16/09/2023

The sand produced has a uniform particle size and stable quality, fully meeting our construction needs. This even particle distribution ensures the strength and adhesion of the sand, effectively supporting the structural integrity of concrete and other building materials. Additionally, the stable quality of the sand reduces the need for adjustments in the mixing ratios, improving the accuracy and consistency of construction, thereby enhancing the overall quality and durability of the project. This not only meets our high standards for building materials but also increases construction efficiency and reduces potential issues caused by inconsistent sand quality.

Mike peter

Mike peter

USA
Mike peter

07/07/2023

The equipment is designed with a rational and compact structure, making maintenance very convenient. By streamlining the maintenance process, we can quickly address any potential issues and ensure the equipment remains stable over the long term. Additionally, the ease of maintenance minimizes the impact of downtime on production progress, thereby improving overall production efficiency and helping us save on repair and replacement costs.

Matthew

Matthew

Jamaica
Matthew

13/10/2021

VIDEO

TECHNICAL PARAMETERS

Model Screw diameter
(mm)
the sink length
(mm)
screen plate size
(mm)
Feeding size
(mm)
Sand production
(t/h)
standard
segregator
specification
standard total power
(kw)
LX765-15-55 765 6500 1500x3000 ≤10 20-60 2x250 39
LX915-15-65 915 7650 1500x3000 ≤10 30-100 2x300 47
2LX915-24-100 915 7650 2400x4500 ≤10 60-200 4x250 81
LX1115-18-75 1115 8650 1800x4500 ≤10 40-120 2x350 60
2LX1115-30-120 1115 8650 3000x4800 ≤10 80-240 4x300 120
Model Sand production
(t/h)
standard total power
(kw)
LX765-15-55 20-60 39
LX915-15-65 30-100 47
2LX915-24-100 60-200 81
LX1115-18-75 40-120 60
2LX1115-30-120 80-240 120
