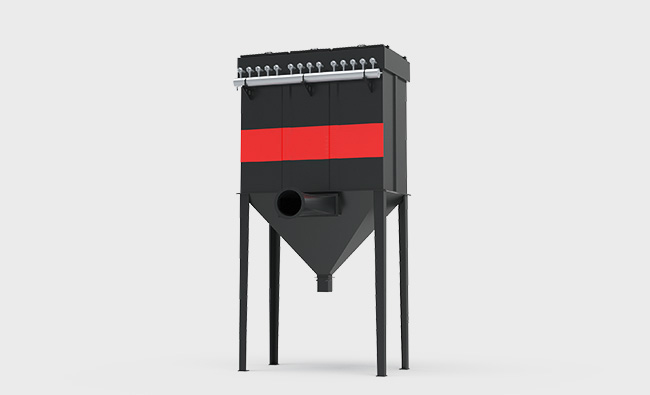

HLMC series line spray off-line pulse dust collector is a new, high-efficiency bag filter. The HLMC type line spray off-line pulse dust collector is known for its excellent performance and is serving industries such as foundry, metallurgy, machinery, power, building materials, mining, cement, and chemical industries. It is suitable for large air volume, high dust concentration, and limited space integrated dust collection, such as in compact scenarios like sand-making towers and sand-making lines.
| Model | Processing air volume (m³/h) |
filtration velocity (m/min) |
Total filtering area (m²) |
Net filtering area (m²) |
Dust concentration of imported air (g/Nm³) |
Dust concentration of outlet air (g/Nm³) |
Clean compressed air | |
| Pressure (Pa) | Air consumption(Nm³/min) | |||||||
| HLMC1000 | 48000~120000 | 0.8~2.0 | 1100 | 1000 | <1000 | <0.02 | (5~7) x 105; | 2.1 |
| HLMC1400 | 67200~168000 | 1500 | 1400 | <1000 | <0.02 | 2.1 | ||
| HLMC1700 | 81600~204000 | 1820 | 1700 | <1000 | <0.02 | 3 | ||
| HLMC2100 | 100800~252000 | 2280 | 2100 | <1000 | <0.02 | 3 | ||
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Processing air volume (m³/h) |
filtration velocity (m/min) |
Total filtering area (m²) |
Dust concentration of imported air (g/Nm³) |
| HLMC1000 | 48000~120000 | 0.8~2.0 | 1100 | <1000 |
| HLMC1400 | 67200~168000 | 1500 | <1000 | |
| HLMC1700 | 81600~204000 | 1820 | <1000 | |
| HLMC2100 | 100800~252000 | 2280 | <1000 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
