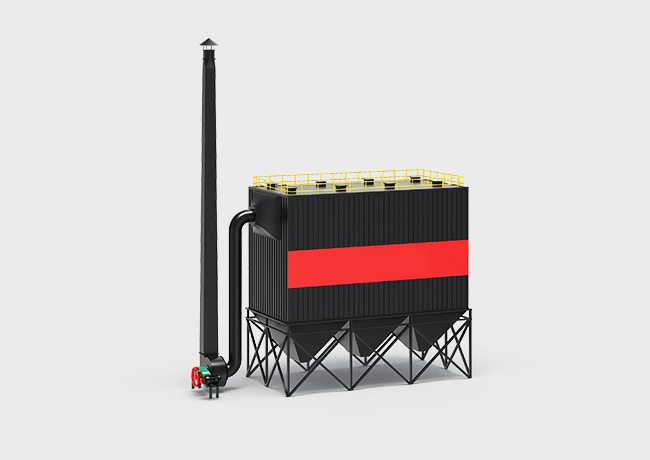

The PPCS series air box pulse dust collector is widely applicable in industries such as building materials, cement, metallurgy, machinery, chemical engineering, and refractory materials. It is particularly suitable for dust collection systems (or dust removal systems) in cement plants, including for crushing, packaging, silo tops, clinker coolers, and various mills, demonstrating strong adaptability.
| Model | Air volume (m³/h) | Filtration velocity (m/min) | Total filtra tion area (m²) | Net filtration area (m²) |
| PPCS 32-3 | 6900 | 1.2-2.0 | 93 | 62 |
| PPCS 32-4 | 8930 | 124 | 93 | |
| PPCS 32-5 | 11160 | 155 | 124 | |
| PPCS 32-6 | 13390 | 186 | 155 | |
| PPCS 64-4 | 17300 | 248 | 186 | |
| PPCS 64-5 | 22300 | 310 | 248 | |
| PPCS 64-6 | 26700 | 372 | 310 | |
| PPCS 64-7 | 31200 | 434 | 372 | |
| PPCS 64-8 | 35700 | 496 | 434 | |
| PPCS 96-4 | 26800 | 372 | 279 | |
| PPCS 96-5 | 33400 | 465 | 372 | |
| PPCS 96-6 | 40100 | 557 | 465 | |
| PPCS 96-7 | 46800 | 650 | 557 | |
| PPCS 96-8 | 53510 | 744 | 650 | |
| PPCS 96-9 | 60100 | 838 | 744 | |
| PPCS96-2X5 | 66900 | 929 | 936 | |
| PPCS96-2X6 | 80700 | 1121 | 1028 | |
| PPCS96-2X7 | 94100 | 1308 | 1215 | |
| PPCS96-2X8 | 107600 | 1494 | 1401 | |
| PPCS96-2X9 | 121000 | 1681 | 1588 | |
| PPCS96-2X10 | 134500 | 1868 | 1775 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
