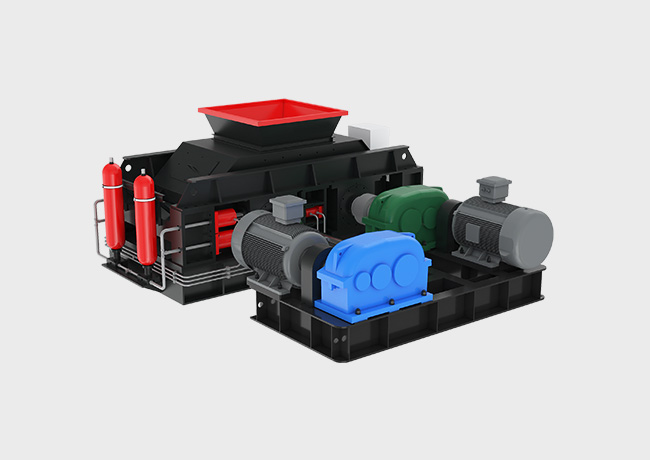

Hydraulic Roll Crusher

  • Feeding Size:≤25-≤30mm
  • Capacity:5-110t/h

The hydraulic roller crusher, featuring an excellent mechanical, electrical and hydraulic integrated design, ensures continuous, stable, and reliable operation. In sand and gravel aggregates and grinding systems, it typically increases output by 30%-40% while reducing total energy consumption by 20%-30%. It is capable of finely crushing materials of various hardness in industries such as mineral processing, chemicals, refractory materials, stone, and building materials.

Consult online Send Inquiry

EQUIPMENT ADVANTAGE

Enhanced Durability

Using heavy-duty thickened roller skins makes the equipment wear-resistant and impact-resistant. Combined with an automatic lubrication system, this significantly extends the lifespan of the components.

Automatic Control System

The equipment is equipped with an automatic control system, which significantly reduces investment and operating costs compared to other crushing systems with similar performance.

Hydraulic Adjustment

The hydraulic adjustment ensures that the gap of the roller skins remains stable between 1-40mm during operation

Overload Protection

It is equipped with overload protection. When unbreakable material enters between the rollers, the rollers automatically give way and then return to the set gap.

FTM

WHAT PEOPLE SAY?

The efficiency of this sand making equipment is extremely high, allowing it to rapidly produce a large quantity of high-quality sand in a short period of time. It not only ensures the uniformity and quality of the sand but also greatly enhances our overall production efficiency. This enables us to complete more tasks in less time, thereby significantly improving the progress and economic benefits of our projects.

Quirin

Quirin

USA
Quirin

26/04/2023

The equipment is very easy to operate, with a well-designed and user-friendly control system. Employees can quickly grasp the operating procedures and use the equipment proficiently after brief training. This not only reduces training time and costs but also enhances production efficiency, allowing the equipment to be put into use more quickly. Additionally, the intuitive control panel and clear operating instructions make it easier for employees to handle the equipment, effectively reducing the risk of operational errors.

Otto

Otto

Pakistan
FTM

09/05/2023

The equipment features low energy consumption and low noise during operation and is equipped with an efficient dust removal system. This not only effectively reduces environmental noise and energy consumption but also significantly lowers airborne dust pollution. These environmental designs meet our sustainability requirements, helping us maintain production efficiency while minimizing our environmental impact, thus supporting the goals of sustainable development and green production. Additionally, these eco-friendly features improve the working environment, providing a more comfortable and healthier working condition for employees.

Osiris

Osiris

Canada
FTM

16/09/2023

The sand produced has a uniform particle size and stable quality, fully meeting our construction needs. This even particle distribution ensures the strength and adhesion of the sand, effectively supporting the structural integrity of concrete and other building materials. Additionally, the stable quality of the sand reduces the need for adjustments in the mixing ratios, improving the accuracy and consistency of construction, thereby enhancing the overall quality and durability of the project. This not only meets our high standards for building materials but also increases construction efficiency and reduces potential issues caused by inconsistent sand quality.

Mike peter

Mike peter

USA
Mike peter

07/07/2023

The equipment is designed with a rational and compact structure, making maintenance very convenient. By streamlining the maintenance process, we can quickly address any potential issues and ensure the equipment remains stable over the long term. Additionally, the ease of maintenance minimizes the impact of downtime on production progress, thereby improving overall production efficiency and helping us save on repair and replacement costs.

Matthew

Matthew

Jamaica
Matthew

13/10/2021

VIDEO

TECHNICAL PARAMETERS

Model Roller Diameter (mm) Roller Width (mm) Maximum Feed Size(mm) Corresponding processing capacity of discharge port(t/h) Power(kw)
5mm 10mm 20mm
2PGY1008 ø 1000 800 ≤40 8-33 24-98 32-130 2×55
2PGY1210 ø 1200 1000 ≤60 12-50 37-148 49-197 2×90
2PGY1510 ø 1500 1000 ≤80 15-60 46-185 60-245 2×160
2PGY1810 ø 1800 1000 ≤100 18-75 55-220 73-295 2×250
2PGY2012 ø 2000 1200 ≤120 25-100 73-295 97-390 2×315

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Maximum Feed Size(mm) Corresponding processing capacity of discharge port(t/h)
5mm 10mm 20mm
2PGY1008 ≤40 8-33 24-98 32-130
2PGY1210 ≤60 12-50 37-148 49-197
2PGY1510 ≤80 15-60 46-185 60-245
2PGY1810 ≤100 18-75 55-220 73-295
2PGY2012 ≤120 25-100 73-295 97-390

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
