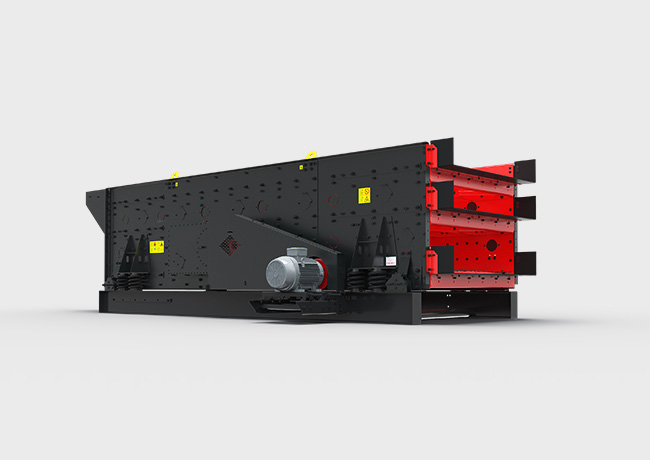

LH Series Triaxial Elliptical Screen

The three-axis elliptical vibrating screen is a screening device designed and developed by integrating the advantages of circular vibrating screens and linear screens. Its motion trajectory is elliptical, which prevents clogging and ensures high screening accuracy. It is suitable for screening processes with high material precision requirements.

Consult online Send Inquiry

EQUIPMENT ADVANTAGE

The elliptical vibration trajectory integrates the advantages of both circular and linear vibrating screen trajectories.

The three-axis vibrator uses chromium-nickel alloy gears for linkage, with an external eccentric block that is easy to adjust.

With a maximum vibration intensity of 6.0G, it provides better screening results and prevents mesh clogging.

Horizontally installed, it is suitable for application sites with height restrictions.

TECHNICAL PARAMETERS

Model	Screen mesh size	Motor power/kw	Number of plies	Rotating speed	Amplitude	Vibration intensity	Installation angle	Separation particle size	Maximum feeding size
2LH1860	1800x6000	37	2	645-875rpm	14-18mm	maximum 6.0G	0°	2-130mm	150mm
3LH1860	1800x6000	37	3	645-875rpm	14-18mm	maximum 6.0G	0°	2-130mm	150mm
2LH2060	2100x6000	37	2	645-875rpm	14-18mm	maximum 6.0G	0°	2-130mm	150mm
3LH2060	2100x6000	45	3	645-875rpm	14-18mm	maximum 6.0G	0°	2-130mm	150mm
2LH2460	2400x6000	45	2	645-875rpm	14-18mm	maximum 6.0G	0°	2-130mm	150mm
3LH2460	2400x6000	45	3	645-875rpm	14-18mm	maximum 6.0G	0°	2-130mm	150mm

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Screen mesh size	Motor power/kw	Maximum feeding size
2LH1860	1800x6000	37	150mm
3LH1860	1800x6000	37	150mm
2LH2160	2100x6000	37	150mm
3LH2160	2100x6000	45	150mm
2LH2460	2400x6000	45	150mm
3LH2460	2400x6000	45	150mm
