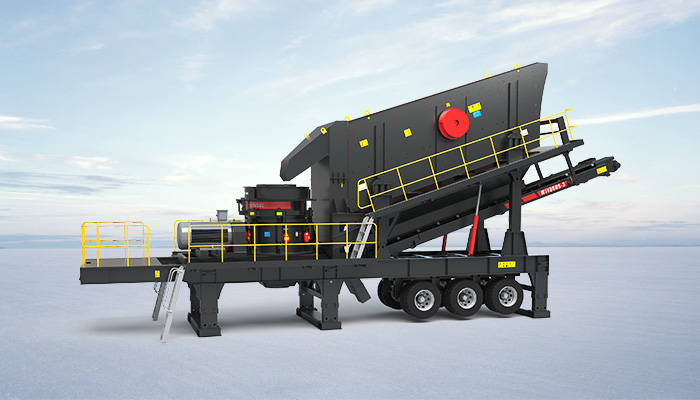

MTF Wheel Type Mobile Crushing And Screening Plant

Feeding Size：≤800mm
Capacity：70-650t/h

The MTF series rubber-tired mobile production line comprehensively covers processing demands ranging from 100 to 300 tons per hour in the fields of hard rock, soft rock, and construction waste treatment applications. The mobile plant features an aesthetically pleasing design, fine craftsmanship, and is equipped with main unit of the latest technology, which ensure stable and reliable performance and high output. Each mobile plant is equipped with crawler devices, ensuring rapid installation and commissioning upon arrival at the site, which reduce the foundation preparation time.

Consult online Send Inquiry

DIVERSE EQUIPMENT FOR YOU

Mobile Station for Medium and Fine Crushing and Screening

For secondary and tertiary crushing and screening stages

Mobile Screening Station

For sieve processed material or coarse materials

Four Combination Mobile Station

Secondary crushing and screening plant

Mobile Coarse Screening Station

For coarse crushing and pre-crushing

Mobile Medium and Fine Crushing Station

For secondary and tertiary crushing stages

Three Combination Mobile Station

Primary crushing and screening equipment

EQUIPMENT ADVANTAGE

Modular Design

Modular and universal design allows devices with the same processing capability to achieve maximum versatility. The main unit can be switched to adjust different materials and realize quick production.

Humanized Maintenance Platform

The maintenance platform features a front-to-back connected design, inclined staircases and widened steps for increased safety and convenience. Some models are added a small rear ladder to facilitate easier inspection and maintenance.

Vehicle-mounted Belt Conveyor

Every machine the mobile production line is equipped with vehicle-mount belt conveyor, eliminating the need for disassembly during transport. Upon arrival at the site, we can organize our work quickly, neatly and orderly.

Eliminating Basic Installation

Each piece of equipment provides a support plate device, reducing the need for foundational investment. This design can be retracted during transportation and relocation, and quickly deployed upon arrival at the site.

Vehicle-mount Electronic Control System

Equipped with an independent electric control system for easy operation, all equipment cables already have been connected before leaving the factory. It is no need for disassembly during transport and allows for rapid on-site commissioning upon arrival.

Large Capacity Silo Design

The large-capacity silo allows for easy loading and can store a certain amount of material, ensuring uniform and stable feeding.

WHAT PEOPLE SAY?

The jaw crusher is a solid piece of equipment. It's built tough and handles even the hardest materials with ease. It’s easy to use and maintain, which is a big plus if you’re working on a busy site. The crusher gives you consistent, reliable performance, and the adjustable settings let you control the size of the crushed material to suit your needs.

Mike peter

USA

24/08/2023

I've been using the Recycling Construction Waste service, and it’s been a game-changer for my projects. The whole process is straightforward and efficient, making it easy to get rid of debris and leftover materials. I love that it’s eco-friendly—knowing that the waste is being repurposed rather than just ending up in a landfill is a big deal for me. Plus, it saves me money on disposal costs and helps keep my worksite clean and organized. Overall, it’s a reliable, cost-effective solution that I’d highly recommend to anyone in construction.

Matthew

Jamaica

12/04/2024

This cone-crushing production line exceeded my expectations. The finished products after processing are of good quality, and the cubic content of the products is more than 85%. After selling them, the profit is high. I am very grateful to FTM Machinery and will continue to expand the business in the future.

Nathan

Germany

06/11/2022

I am very satisfied with this rock crusher. Its crushing efficiency is truly impressive; it can process a large amount of stone in a short time, completely exceeding my expectations. The crushing effect is also excellent, producing uniformly sized stone particles of high quality, perfectly meeting the needs of our construction projects.

Patrick

The Philippines

08/10/2023

What surprises me even more is the durability of this crusher. I've been using it for a while now, and it has hardly had any issues. Maintenance is also very convenient, saving a lot of time and costs. The operation is especially simple, with an intuitive control system that even beginners can quickly master.

Ryan

Indonesia

17/01/2024

TECHNICAL PARAMETERS

Series	Standard Model	On board Equipment	On board Equipment	Processing Capability(t/h)	Transport Dimensions(mm)
FOUR COMBINATION MOBILE STATION	MTF100Y-2	GZD850×3000/2YK1545	HD72/GYS300	50-100	15000×2650×4500
	MTF100Y-3	GZDT0835/3HX1548	HDX86/SC100F1	50-100	17500×2500×4000
	MTF150Y-3	GZDT0835/3HX1548	HDX86/SC160F1	70-150	17500×2500×4000
	MTF150R-3	GZDT0835/3HX1548	HDX86/CI1110	60-150	17500×2500×4000
MOBILE COARSE CRUSHING STATION	MTF96	GZDT9538	CJ96	70-200	13000×2950×4250
	MTF98	GZDT9538	HDX98	80-200	13000×2950×4250
	MTF106	GZDT1145A	CJ106	90-300	14000×3000×4400
	MTF110	GZDT1145A	HDX110	120-300	14000×3000×4400
	MTF1213C	GZDT9538	Cl1213	80-200	13000×2950×4250
	MTF1316C	GZDT1145A	Cl1316	100-300	14000×3000×4400
MOBILE MEDIUM AND FINE CRUSHING STATION	MTF300	一	HPM300C1	100-200	15500×2900×4200
	MTF400	一	HPM400C3	150-300	16500×3100×4300
	MTF250	一	SC250F1	90-200	16500×3100×4300
	MTF1213	一	Cl1213	80-200	16000×2900×4300
	MTF1316	一	Cl1316	100-300	16500×3100×4500
	MTF0926	一	HV10926	85-200	16500×3100×4300
	MTF1040	一	HV11040	120-300	16500×3100×4400
MOBILE SCREENING STATION	MTF1865-3	一	3HX1865	65-200	14500×2900×4000
MOBILE SCREENING STATION	MTF2165-3	一	3HX2165	85-300	15000×2900×4400
MOBILE STATION FOR MEDIUM AND FINE CRUSHING AND SCREENING	MTF300S-3SⅡ	3HX1865	HPM300C1	100-200	15000×3000×4000
	MTF300S-3	3HX2165	HPM300C1	100-200	15000×3000×4000
	MTF400S-3	3HX2165	HPM400C3	150-300	15000×3000×4000
	MTFG400S-3SⅡ	3HX1865	GYS400C1	100-200	15000×3000×4000
	MTFG400S-3	3HX2165	GYS400C1	100-200	15000×3000×4000
	MTF250S-3	3HX2165	SC250F1	90-200	15000×3000×4200
	MTF1213S-3	3HX1865	Cl1213	80-200	15000×3000×4200
	MTF1316S-3	3HX2165	Cl1316	100-300	15000×3000×4200
	MTF0926S-2	2HX1865	HVI0926	85-200	18000×3000×4200
	MTF1040S-2	2HX2165	HV11040	120-300	18000×3000×4200
THREE COMBINATION MOBILE STATION	MTF1213-Ⅲ	GZDT9538/3HX1865	Cl1213	80-200	18200×2800×4350
	MTF1316-Ⅲ	GZDT1145A/3HX2165	Cl1316	100-300	18200×3000×4200
	MTF1410-Ⅲ	GZDT9538/3HX1865	PCZ1410	80-200	18200×2800×4200
	MTF1612-Ⅲ	GZDT1145A/3HX2165	PCZ1612	100-300	18200×3000×4200

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Series	Standard Model	Processing Capacity (t/h)
FOUR COMBINATION MOBILE STATION	MTF100Y-2	50-100
	MTF100Y-3	50-100
	MTF150Y-3	70-150
	MTF150R-3	60-150
MOBILE COARSE CRUSHING STATION	MTF96	70-200
	MTF98	80-200
	MTF106	90-300
	MTF110	120-300
	MTF1213C	80-200
	MTF1316C	100-300
MOBILE MEDIUM AND FINE CRUSHING STATION	MTF300	100-200
	MTF400	150-300
	MTF250	90-200
	MTF1213	80-200
	MTF1316	100-300
	MTF0926	85-200
	MTF1040	120-300
MOBILE SCREENING STATION	MTF1865-3	65-200
MOBILE SCREENING STATION	MTF2165-3	85-300
MOBILE STATION FOR MEDIUM AND FINE CRUSHING AND SCREENING	MTF300S-3SⅡ	100-200
	MTF300S-3	100-200
	MTF400S-3	150-300
	MTFG400S-3SⅡ	100-200
	MTFG400S-3	100-200
	MTF250S-3	90-200
	MTF1213S-3	80-200
	MTF1316S-3	100-300
	MTF0926S-2	85-200
	MTF1040S-2	120-300
THREE COMBINATION MOBILE STATION	MTF1213-Ⅲ	80-200
	MTF1316-Ⅲ	100-300
	MTF1410-Ⅲ	80-200
	MTF1612-Ⅲ	100-300
