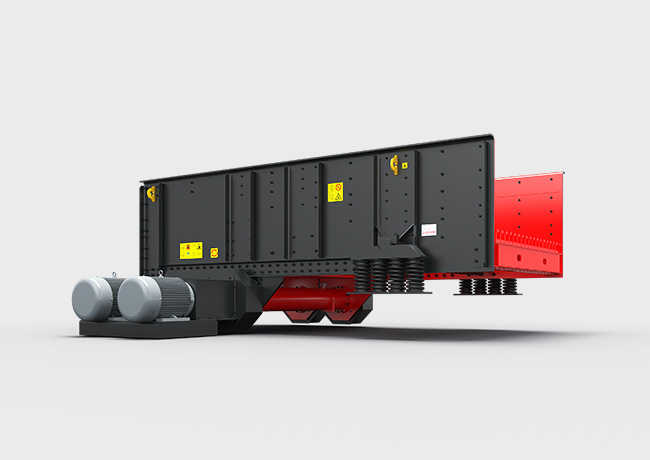

The SG series heavy-duty bar vibrating screen is a high-strength linear vibrating screen designed for high-impact load conditions. It is ideal for handling raw materials with high fine particle content, such as blasted rock, gravel, and river pebbles. This equipment is widely used in quarries, mining, building materials, power, coal, and chemical industries. It is suitable for inspection screening before primary and secondary crushing.
| Model | Size (mm) |
Power (kw) |
Tiers | Processing Capacity (t/h) |
Amplitude (mm) | Vibration Intensity | Installation Angle | Separation Particle Size (mm) |
Maximum Feeding Size (mm) |
| SG1231 | 1200×3000 | 2×7.5 | 1 | 300-700 | 5-14 | Maximum4.5G | 5°-10° | 60-250 | 500 |
| SG1242 | 1200×3900 | 2×11 | 2 | 300-700 | 5-14 | Maximum4.5G | 5°-10° | 60-250 | 500 |
| SG1541 | 1500×3900 | 2×11 | 1 | 600-1100 | 5-14 | Maximum4.5G | 5°-10° | 60-250 | 700 |
| SG1542 | 1500×3900 | 2×15 | 2 | 600-1100 | 5-14 | Maximum4.5G | 5°-10° | 60-250 | 700 |
| SG1841 | 1800×3900 | 2×11 | 1 | 800-1300 | 5-14 | Maximum4.5G | 5°-10° | 60-250 | 900 |
| SG1842 | 1800×3900 | 2×22 | 2 | 800-1300 | 5-14 | Maximum4.5G | 5°-10° | 60-250 | 900 |
| SG2151 | 2100×4800 | 2×22 | 1 | 900-1500 | 5-14 | Maximum4.5G | 5°-10° | 60-250 | 1200 |
| SG2451 | 2400×4800 | 2×30 | 1 | 1000-1800 | 5-14 | Maximum4.5G | 5°-10° | 60-250 | 1500 |
| Model | Tiers | Processing Capacity (t/h) |
Maximum Feeding Size (mm) |
| SG1231 | 1 | 300-700 | 500 |
| SG1242 | 2 | 300-700 | 500 |
| SG1541 | 1 | 600-1100 | 700 |
| SG1542 | 2 | 600-1100 | 700 |
| SG1841 | 1 | 800-1300 | 900 |
| SG1842 | 2 | 800-1300 | 900 |
| SG2151 | 1 | 900-1500 | 1200 |
| SG2451 | 1 | 1000-1800 | 1500 |
