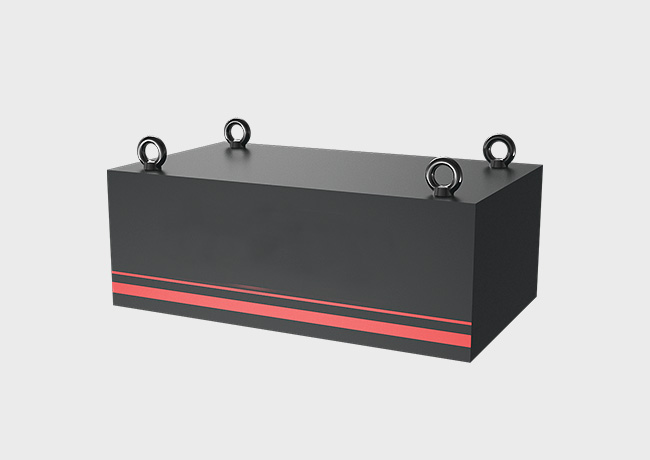

Suspension Permanent Magnet Iron Remover

The RCYB series suspended permanent magnet iron remover features a composite magnetic system made of special permanent magnets with high coercivity and high remanence. It offers advantages such as maintenance-free operation, strong magnetic force, long lifespan, simple installation, ease of use, and reliable operation. It is suitable for removing iron from non-magnetic materials on belt conveyors, vibrating conveyors, electromagnetic vibrating feeders, and discharge chutes. All technical specifications of this product comply with the JB/T 8711-2012 standard.

Consult online Send Inquiry

TECHNICAL PARAMETERS

Model	Belt Width (mm)	Rated Hoisting Height (h=mm)	Materials Thickness (≤mm)	Magnetic Field Strength (≥mt)	Belt Speed (≤m/s)	Weight(kg)	Dimension(mm)
Model	Belt Width (mm)	Rated Hoisting Height (h=mm)	Materials Thickness (≤mm)	Magnetic Field Strength (≥mt)	Belt Speed (≤m/s)	Weight(kg)	L	D	H
RCYB-4	400	130	80	63	2.5	115	400	300	210
RCYB-5	500	150	100	63		180	500	400	230
RCYB-6	600/650	180	130	63		300	600	500	250
RCYB-6.5	650	200	150	65		450	650	600	250
RCYB-8	800	250	200	70		580	800	700	250
RCYB-10	1000	300	250	70		880	1000	800	250
RCYB-12	1200	350	300	70		1100	1200	1000	270
RCYB-14	1400	400	350	70		1700	1400	1300	270
RCYB-16	1600	450	400	70		2200	1600	1500	270

Model	Materials Thickness (≤mm)	Magnetic Field Strength (≥mt)
	Materials Thickness (≤mm)	Magnetic Field Strength (≥mt)
RCYB-4	80	63
RCYB-5	100	63
RCYB-6	130	63
RCYB-6.5	150	65
RCYB-8	200	70
RCYB-10	250	70
RCYB-12	300	70
RCYB-14	350	70
RCYB-16	400	70
