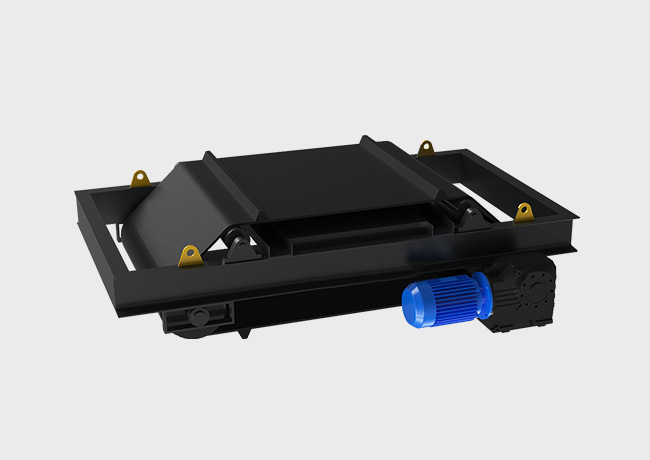

The RCYD type permanent magnet self-unloading iron remover is equivalent to the RCYC series model and is widely used in various industries such as metallurgy, mining, coal preparation plants, ceramics, glass, cement, fertilizers, plastics, building materials, and papermaking for iron removal in conveyor systems. It can continuously attract and discard iron. The belt features an automatic centering function, and the equipment is characterized by simple installation, ease of use, and reliable operation. Its internal magnetic circuit adopts a perfected pole structure, ensuring long-term, stable operation in harsh environments. It is available in both explosion-proof and armored types.
| Model | Belt Width (mm) |
Raled Hoisting Height (h=mm) |
Magnetic Field Strength (≥mt) |
Materials Thickness (≤mm) |
Motor Power (kw) |
Belt Speed (≤m/s) |
Working Hours | Weight (kg) | Dimension(mm) | ||||
| A | B | C | D | E | |||||||||
| RCYD(C)-5 | 500 | 150 | 70 | 80 | 1.5 | 2.5 | Continuity | 750 | 1900 | 710 | 935 | 950 | 753 |
| RCYD(C)-6 | 600 | 175 | 70 | 120 | 1.5 | 920 | 2050 | 710 | 1020 | 1050 | 753 | ||
| RCYD(C)-6.5 | 650 | 200 | 70 | 150 | 1.5 | 1200 | 2050 | 728 | 1020 | 1200 | 888 | ||
| RCYD(C)-8 | 800 | 250 | 70 | 200 | 2.2 | 1400 | 2250 | 750 | 1300 | 1350 | 1090 | ||
| RCYD(C)-10 | 1000 | 300 | 70 | 250 | 3.0 | 2120 | 2650 | 889 | 1550 | 1450 | 1335 | ||
| RCYD(C)-12 | 1200 | 350 | 70 | 300 | 4.0 | 3350 | 2860 | 1010 | 1720 | 1550 | 1515 | ||
| RCYD(C)-14 | 1400 | 400 | 70 | 350 | 4.0 | 4450 | 3225 | 1050 | 1980 | 1800 | 1755 | ||
| RCYD(C)-16 | 1600 | 450 | 70 | 400 | 5.5 | 6200 | 3350 | 1180 | 2160 | 1950 | 1850 | ||
| RCYD(C)-18 | 1800 | 500 | 70 | 450 | 5.5 | 8100 | 3580 | 1210 | 2450 | 2200 | 2130 | ||
| RCYD(C)-20 | 2000 | 550 | 70 | 500 | 7.5 | 9700 | 3800 | 1300 | 2700 | 2400 | 2410 | ||
| Model | Magnetic Field Strength (≥mt) |
Materials Thickness (≤mm) |
| RCYD(C)-5 | 70 | 80 |
| RCYD(C)-6 | 70 | 120 |
| RCYD(C)-6.5 | 70 | 150 |
| RCYD(C)-8 | 70 | 200 |
| RCYD(C)-10 | 70 | 250 |
| RCYD(C)-12 | 70 | 300 |
| RCYD(C)-14 | 70 | 350 |
| RCYD(C)-16 | 70 | 400 |
| RCYD(C)-18 | 70 | 450 |
| RCYD(C)-20 | 70 | 500 |
