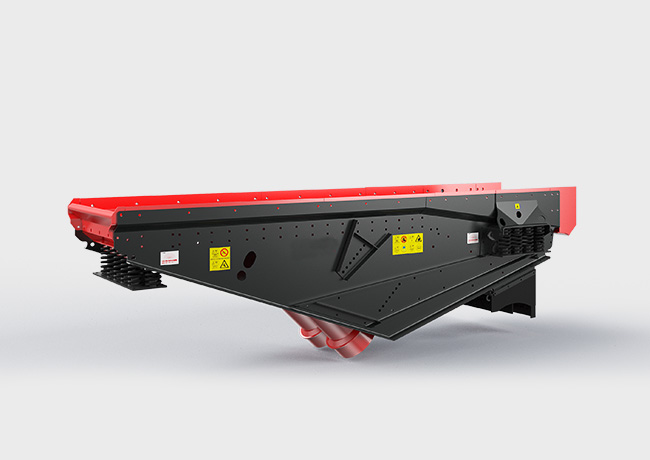

HMF Series Motor Vibrating Feeder

HMF series motor vibrating feeders are suitable for stone, building materials, metallurgical mining and other industries to provide feed materials for small and medium-sized primary crushing equipment. It has a compact structure and strong impact resistance. It uses a vibration motor as the vibration source. It has simple maintenance during use and a low failure rate, which greatly facilitates on-site adjustment and production maintenance.

Consult online Send Inquiry

EQUIPMENT ADVANTAGE

It boasts vibration motor drive, stable performance and long maintenance cycle

It can be equipped with wear-resistant grate plates and finger-shaped rods to prevent clogging.

The lower part of the grate bar is equipped with a discharge port as standard, which can directly collect the materials under the screen to the belt.

The lower part of the grates can be equipped with a screen to improve raw material utilization.

TECHNICAL PARAMETERS

Model	W×L (mm)	Length of the grate (mm)	Max.Feeding size (mm)	Max.Feeding capacity(t/h)	Power (kw)
HMF0832	800×3200	800×2	450	300	2×2.9
HMF0832S	800×3200	800×2	450	300	2×2.9
HMF1042	1000×4200	800×2	500	400	2×5.5
HMF1042S	1000×4200	800×2	500	400	2×5.5

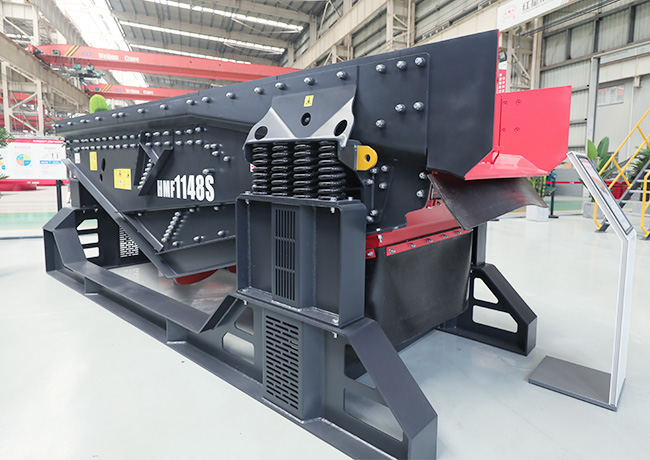

HMF1148	1100×4800	800×2	700	500	2×7.5
HMF1148S	1100×4800	800×2	700	500	2×7.5

Note:1. The model suffix S means the additional screen. Example: HMF0832S, which is a type with a screen under the grate bar;2. The maximum feeding capacity is for dry materials with a bulk density of 1.6t/m³, for reference only.
