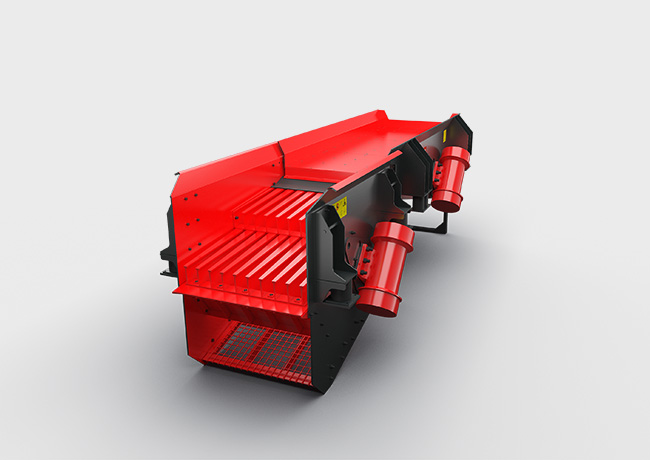

HST Series Feeding And Pre-screening Combination

The feeding and screening units operate independently and the frequency can be adjusted flexibly.

Consult online Send Inquiry

EQUIPMENT ADVANTAGE

Flexible adjustment of frequency;

It solves the problem of feeding materials with high viscosity and high soil content

After pre-screening, the coarse crushing load is reduced and the production capacity of the entire line is increased.

FTM

TECHNICAL PARAMETERS

Model Feeding part Screening part Feeding width
(mm)		 Screen width
(mm)		 Processing capacity
(t/h)		 Maximum feed size
(mm)		 Motor power
(kw)		 Rotating speed Lower screen Labyrinth adjustment range
HST0863 HST0841 HST0822 690 750 75-240 500 4x5.5 980rpm ≤40mm 40-110mm
HST1063 HST1040 HST1022 950 1020 90-300 600 4x5.5 980rpm ≤40mm 40-110mm
HST1263 HST1241 HST1222 1080 1150 120-400 750 4x7.5 980rpm ≤40mm 40-110mm
HST1363 HST1341 HST1322 1230 1300 165-550 850 4x7.5 980rpm ≤40mm 40-110mm
HST1673H HST1541H HST1622H 1550 1610 240-800 950 4x11.5 980rpm ≤40mm 40-125mm

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Feeding width
(mm)		 Screen width
(mm)		 Processing capacity
(t/h)
HST0863 690 750 75-240
HST1063 950 1020 90-300
HST1263 1080 1150 120-400
HST1363 1230 1300 165-550
HST1673H 1550 1610 240-800

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
